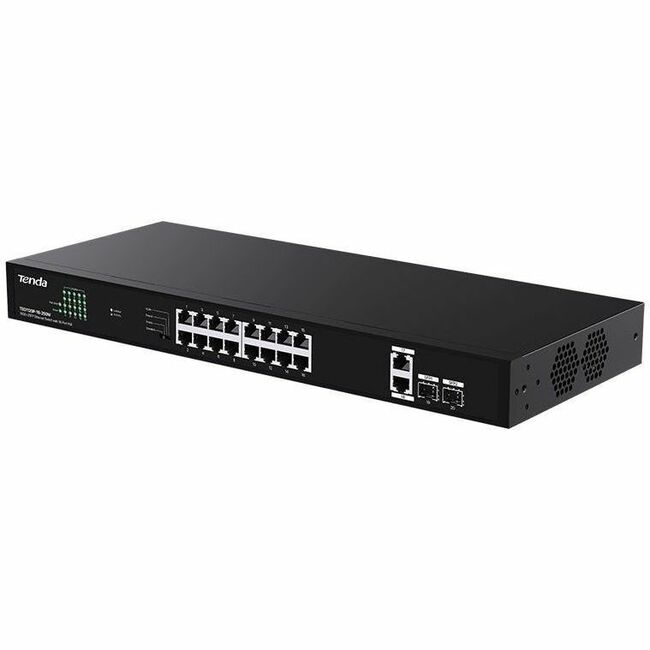

Tenda 18GE+2SFP Ethernet Switch With 16-Port PoE

Dedicated for SMB Networking & Surveillance

18GE+2SFP Ethernet Switch With 16-Port PoE |

High speed network transmission, Experience extreme smoothness

Full gigabit ports , 40 Gbps non-blocking line speed forwarding, improve the forwarding rate of large files, ensure smooth and stable transmission of large files and HD videos.

• Full gigabit ports
• 40 Gbps Switching capacity

GE and SFP Uplink Ports, Easier HD Monitoring

With two gigabit uplink port and two gigabit uplink optical fiber port, easily complete low-cost remote networking.

Smart PoE Power Supply, Stable Transmission

Providing 16 100/1000M PoE ports in accordance with the IEEE802.3AF / AT standard, the maximum PoE output of the whole machine is 150W, and of a single port is 30W. It can provide stable power supply and data transmission for HD PoE IP cameras, APs, etc.

4 Modes for More Scenarios, One-key To Change Smart and Easy

The switch supports 4 working modes of Standard, VLAN, Priority and Extend, realizing flexible network deployment in complex cases with lowered cost.

• Standard Mode
• Priority Mode
• Extend Mode
• VLAN Mode

Standard Mode

All ports can communicate with each other. It can be used as a common non-management PoE switch.

Priority Mode

Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.

Extend Mode

The maximum transmission distance of the 9-16 ports of the switch can reach 250 meters, and all ports can communicate with each other.

VLAN Mode

Ports 1 to 16 cannot communicate with each other, but can communicate with ports 17, 18, SFP1 (19), and SFP2 (20), which can be used to isolate broadcast storms and DHCP conflicts.

Standard 19-inch metal body design

Quick and easy Internet settings, simple enough for you to set up office networking,19-inch body design, and support desktop, wall and rack mounting.

6KV Excellent Lightning Protection

The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.

• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z? IEEE802.3x, IEEE802.3af/at
• 16* 10/100/1000 Base-T Ethernet ports (Data/Power), 2 * 10/100/1000 Base-T Ethernet ports (Data), and 2 * 100/1000 Base-X SFP optical ports
• 8K MAC address and MAC address automatic learning
• IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control
• 40 Gbps non-blocking wire-speed forwarding backplane bandwidth
• The maximum output power of the PoE port is 30 W. The maximum output power of the switch PoE port is 135W.
• 4 Mb large buffer design
• Standard 1U height, rack mounted switch
