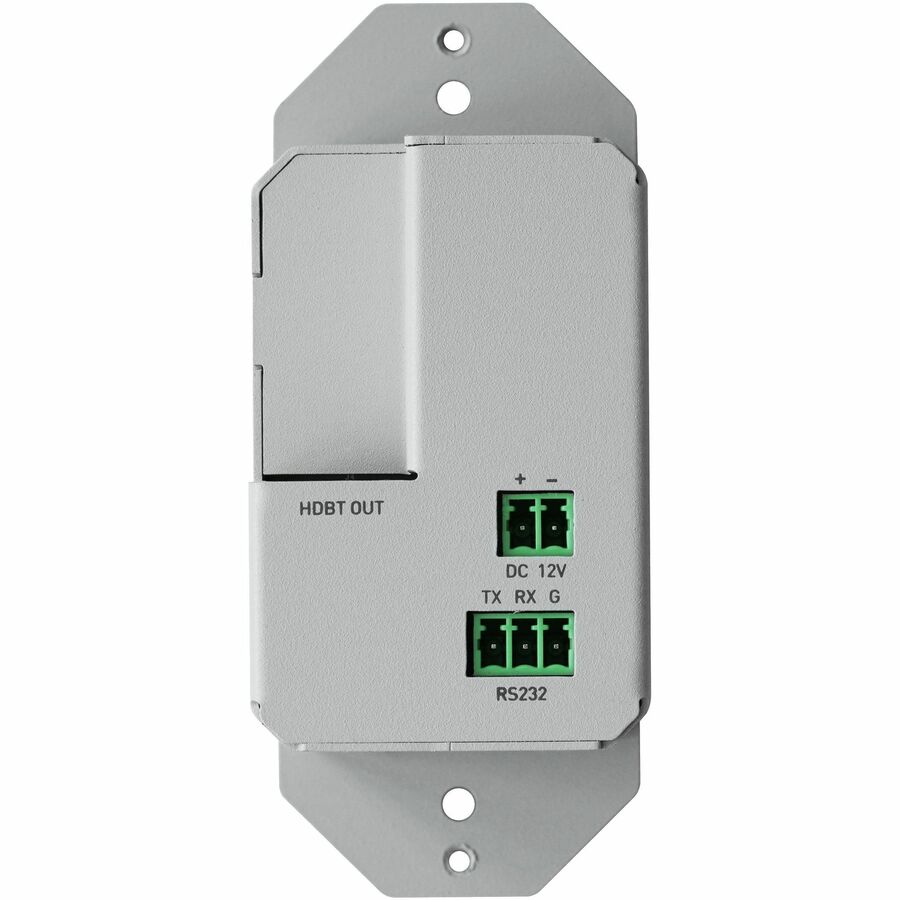

Hall DSCV1-70-TX Video Extender Transmitter

Our Discovery Series offers a cost-effective 4K extension with flexible USB and HDMI capabilities for software video conferencing and audio extraction. These kits were designed specifically to address signal extension for multiple participants in classrooms, huddle spaces, or conference rooms. The Discovery series includes an HDBaseT Wall Plate Transmitter, and Receiver kit that pairs natively with soft-codec video conferencing applications such as Zoom, Teams, Skype, WebEx and more.

With both US and UK transmitter wallplate options available, Discovery makes collaboration easy and fluid with support for resolutions up to 4K

Discovery 1 is a single gang wall-plate transmitter and receiver extender kit. It supports resolutions up to 4K@60 4:2:0 8bit, and HDCP 2.2 compatibility. It can transmit 4K signal up to 35m/115ft via a single Cat 5e/6 cable and up to 40m/131ft via a single Cat 6a/7 cable. With oneway PoH function, the transmitter can be powered by the receiver. The transmitter also features USB pass-through and RS232 pass-through over HDBT, and it also supports firmware upgrading through RS232 port.

• Video Extender Transmitter is a reliable audio/video transmission extending solution
• HDMI in allows convenient transfer of content and data to video extender transmitter to ensure maximum dependability
• Download media from your memory card with the built-in USB along with adequate power supply
• Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
• The DSCV1-70-TX video extender transmitter provides plenty of freedom with wired connectivity
• 1 input devices supported to better accommodate your specific requirements
• 131.23 ft maximum operating distance for reliable coverage and maximum portability
• 4K graphics mode provides optimal video output with remarkable picture clarity
• Wall Plate form factor for your convenience and simplicity of usage
